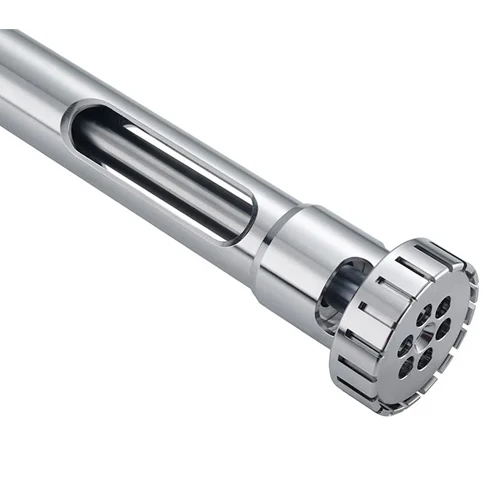

IKA® S 50 N - G 45 F Dispersing Element, Vol. Range 25 - 1,000ml, 8003900

The IKA S 50 N-G 45 F is a fine-tooth (F) dispersing element for the ULTRA-TURRAX T 50 digital disperser. Its slotted, fine rotor-stator geometry in AISI 316L stainless steel delivers the finest dispersing results of the S 50 N range, handling batches of roughly 0.25 to 10 liters (water) for demanding emulsions and suspensions.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.25 - 10 l
Stator diameter	45 mm
Rotor diameter	40 mm
Gap between rotor and stator	0.5 mm
Circumferential speed max.	20.9 m/s
Immersion depth	70 - 250 mm
Shaft length	290 mm
Material in contact with medium	PTFE, AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Suitable for abrasive substances	yes
Working temperature max.	180 °C
Sterilization methods	all methods
Ultimate fineness, suspensions	10 - 30 µm
Ultimate fineness, emulsions	1 - 10 µm
Weight	0.929 kg

Product Data Sheet  |  Product Manual
