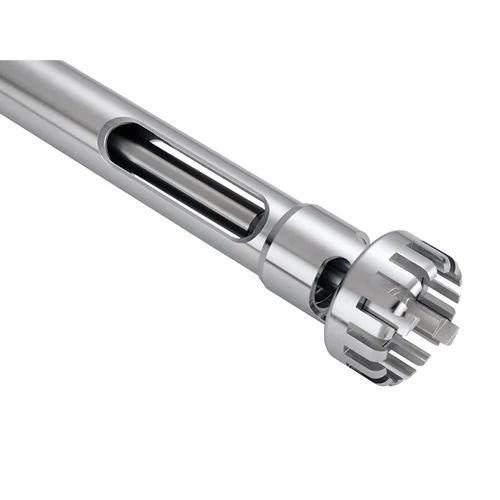

IKA® S 50 N - G 45 G Dispersing Element, Vol. Range 50 - 2,000ml, 8003000

The IKA S 50 N-G 45 G is a standard dispersing element for the ULTRA-TURRAX T 50 digital disperser. It features coarse (G) rotor-stator teeth in AISI 316L stainless steel and handles batches from roughly 0.5 to 20 liters (water), making it well suited to everyday dispersing and homogenizing of suspensions and emulsions.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.5 - 20 l
Stator diameter	45 mm
Rotor diameter	36 mm
allowable Speed max.	10000 rpm
Circumferential speed max.	18.8 m/s
Immersion depth	70 - 250 mm
Shaft length	304 mm
Material in contact with medium	PTFE, AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Suitable for abrasive substances	yes
Working temperature max.	180 °C
Sterilization methods	all methods
Ultimate fineness, suspensions	40 - 100 µm
Ultimate fineness, emulsions	10 - 30 µm
Weight	1 kg
