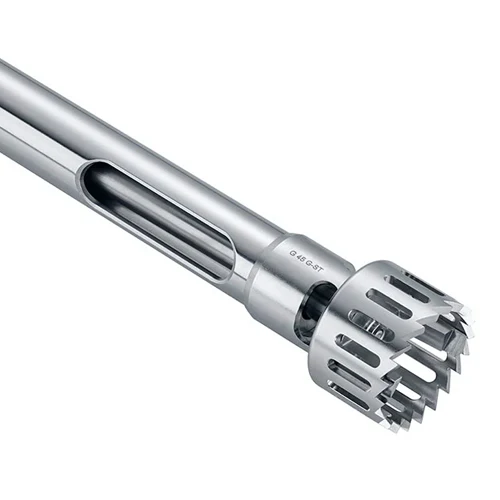

IKA® S 50 N - G 45 G - ST Dispersing Element, Vol. Range 50 - 2,000ml, 8039500

The IKA S 50 N-G 45 G-ST is the stainless-steel (ST) version of the standard coarse-tooth (G) dispersing element for the ULTRA-TURRAX T 50 digital disperser. With an all AISI 316L stainless construction and a 45 mm stator, it handles batches of roughly 0.5 to 20 liters (water) for routine dispersing and homogenizing.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.5 - 20 l
Stator diameter	45 mm
Rotor diameter	38 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	10000 rpm
Circumferential speed max.	19.9 m/s
Immersion depth	70 - 250 mm
Shaft length	300 mm
Material in contact with medium	PTFE, AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Suitable for abrasive substances	yes
Working temperature max.	180 °C
Sterilization methods	all methods
Ultimate fineness, suspensions	40 - 100 µm
Ultimate fineness, emulsions	10 - 30 µm
Weight	0.967 kg

Product Data Sheet  |  Product Manual
