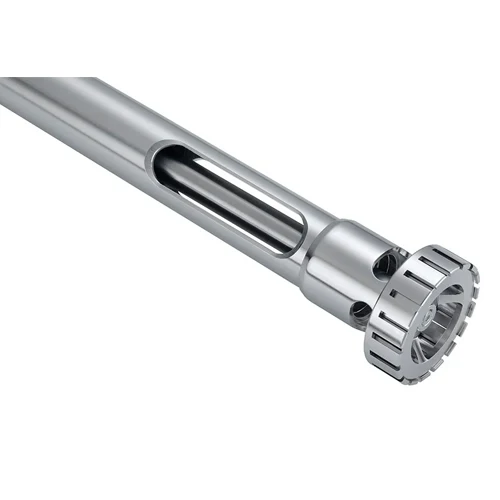

IKA® S 50 N - G 45 M Dispersing Element, Vol. Range 50 - 1,500ml, 8003300

The IKA S 50 N-G 45 M is a medium-tooth (M) dispersing element for the ULTRA-TURRAX T 50 digital disperser. Built from AISI 316L stainless steel, it covers batches of roughly 0.5 to 15 liters (water) and produces finer results than the standard coarse (G) tool, ideal for medium-viscosity suspensions and emulsions.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.5 - 15 l
Stator diameter	45 mm
Rotor diameter	40.5 mm
Gap between rotor and stator	0.25 mm
allowable Speed max.	10000 rpm
Circumferential speed max.	21.2 m/s
Immersion depth	70 - 250 mm
Shaft length	298 mm
Material in contact with medium	PTFE, AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Suitable for abrasive substances	yes
Working temperature max.	180 °C
Sterilization methods	all methods
Ultimate fineness, suspensions	25 - 50 µm
Ultimate fineness, emulsions	5 - 20 µm
Weight	0.95 kg

Product Data Sheet  |  Product Manual
