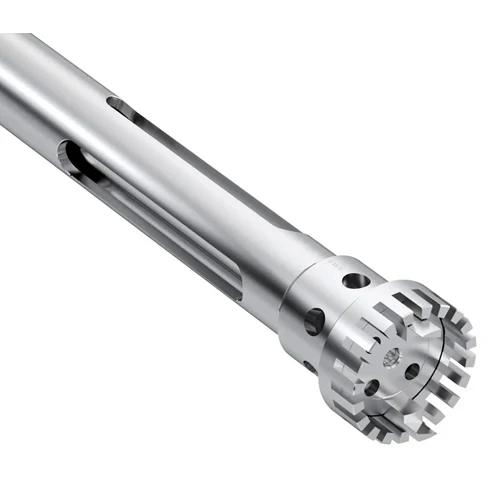

IKA® S 65 C - G 65 G Dispersing Element, Vol. Range 2 - 50L, 10001665

The IKA S 65 C-G 65 G is a coarse-tooth (G) dispersing element for the ULTRA-TURRAX T 65 basic/digital disperser, built with a ceramic plain bearing. Its AISI 316L stainless steel and ceramic wetted parts suit routine dispersing and homogenizing of large batches from roughly 2 to 50 liters (water).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	2 - 50 l
Stator diameter	65 mm
Rotor diameter	53 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	9500 rpm
Circumferential speed max.	26.4 m/s
Immersion depth	90 - 450 mm
Shaft length	520 mm
Material in contact with medium	AISI 316L, ceramic
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	170 °C
Sterilization methods	all methods
Ultimate fineness, suspensions	25 - 75 µm
Ultimate fineness, emulsions	5 - 25 µm
Weight	4.09 kg

Product Data Sheet  |  Product Manual
