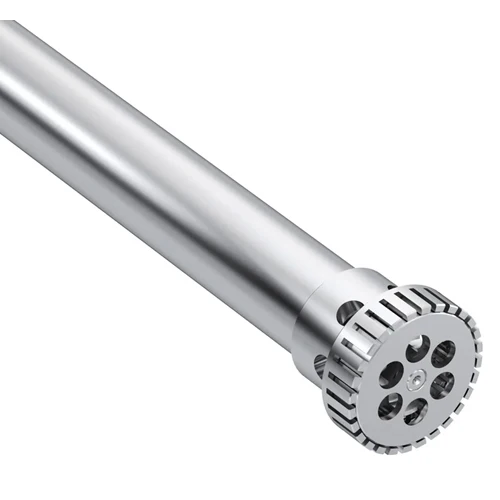

IKA® S 65 KD - G 65 F Dispersing Element, Vol. Range 2 - 30L, 10000643

The IKA S 65 KD-G 65 F is a fine-tooth (F) KD dispersing element for the ULTRA-TURRAX T 65 basic/digital disperser. Its slotted fine geometry, sealed bearing and FFPM, PTFE and AISI 316L wetted parts suit solvent and vacuum work and deliver the finest results of the S 65 KD range, covering large batches of roughly 2 to 30 liters (water).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	2 - 30 l
Stator diameter	65 mm
Rotor diameter	58 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	9500 rpm
Circumferential speed max.	28.8 m/s
Immersion depth	80 - 450 mm
Shaft length	520 mm
Material in contact with medium	FFPM, PTFE, AISI 316L
pH range	2 - 13
Working temperature max.	170 °C
Sterilization methods	wet chemical
Vacuum	100 mbar
Ultimate fineness, suspensions	5 - 20 µm
Ultimate fineness, emulsions	1 - 10 µm
Weight	4.24 kg
