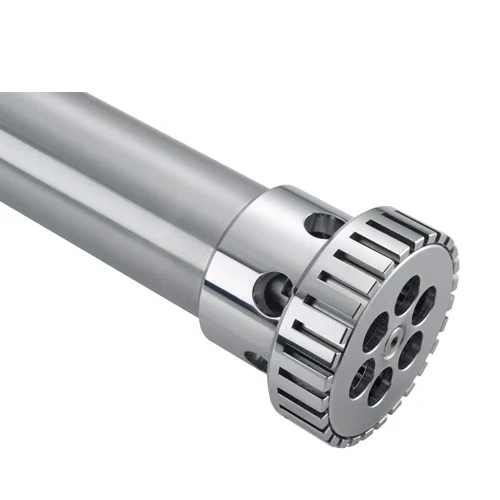

IKA® S 65 KG - HH - G 65 F Dispersing Element, Vol. Range 2 - 30L, 10010768

The IKA S 65 KG-HH-G 65 F is a fine-tooth (F) high-performance dispersing element for the ULTRA-TURRAX T 65 basic/digital disperser. Its slotted fine geometry, wear-resistant tungsten-carbide (WC) rotor-stator, FFPM seals and AISI 316L stainless steel deliver the finest results of the S 65 KG-HH range, suiting hard materials and pressure/vacuum work across batches of roughly 2 to 30 liters (water).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	2 - 30 l
Stator diameter	65 mm
Rotor diameter	58 mm
Gap between rotor and stator	0.5 mm
Circumferential speed max.	28.8 m/s
Immersion depth	80 - 450 mm
Shaft length	510 mm
Material in contact with medium	FFPM, WC /AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	170 °C
Sterilization methods	all methods
Vacuum	1 mbar
Pressure max.	6 bar
Ultimate fineness, suspensions	5 - 20 µm
Ultimate fineness, emulsions	1 - 10 µm
FDA conformity	yes
Dimensions (W x H x D)	65 x 550 x 65 mm
Weight	4.45 kg
