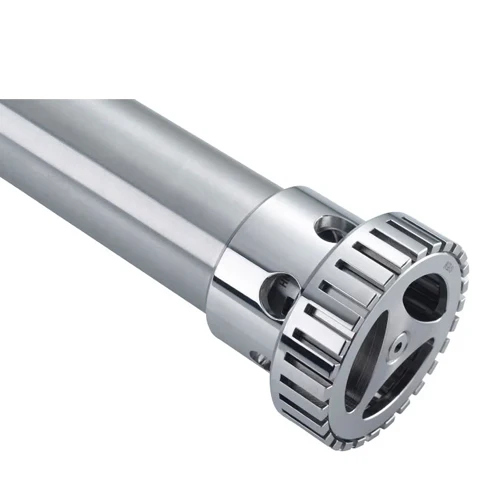

IKA® S 65 KG-HH-G 65 M Dispersing Element, 10010767

The IKA S 65 KG-HH-G 65 M is a medium-tooth (M) high-performance dispersing element for the ULTRA-TURRAX T 65 basic/digital disperser. Its wear-resistant tungsten-carbide (WC) rotor-stator, FFPM seals and AISI 316L stainless steel handle hard, abrasive materials and pressure/vacuum work, delivering finer results than the coarse (G) tool across batches of roughly 2 to 40 liters (water).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	2 - 40 l
Stator diameter	65 mm
Rotor diameter	58 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	9500 rpm
Circumferential speed max.	28.8 m/s
Immersion depth	80 - 450 mm
Shaft length	510 mm
Material in contact with medium	FFPM, WC /AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	170 °C
Sterilization methods	all methods
Vacuum	1 mbar
Pressure max.	6 bar
Ultimate fineness, suspensions	20 - 50 µm
Ultimate fineness, emulsions	5 - 15 µm
FDA conformity	yes
Dimensions (W x H x D)	65 x 550 x 65 mm
Weight	4.41 kg

Product Data Sheet  |  Product Manual
