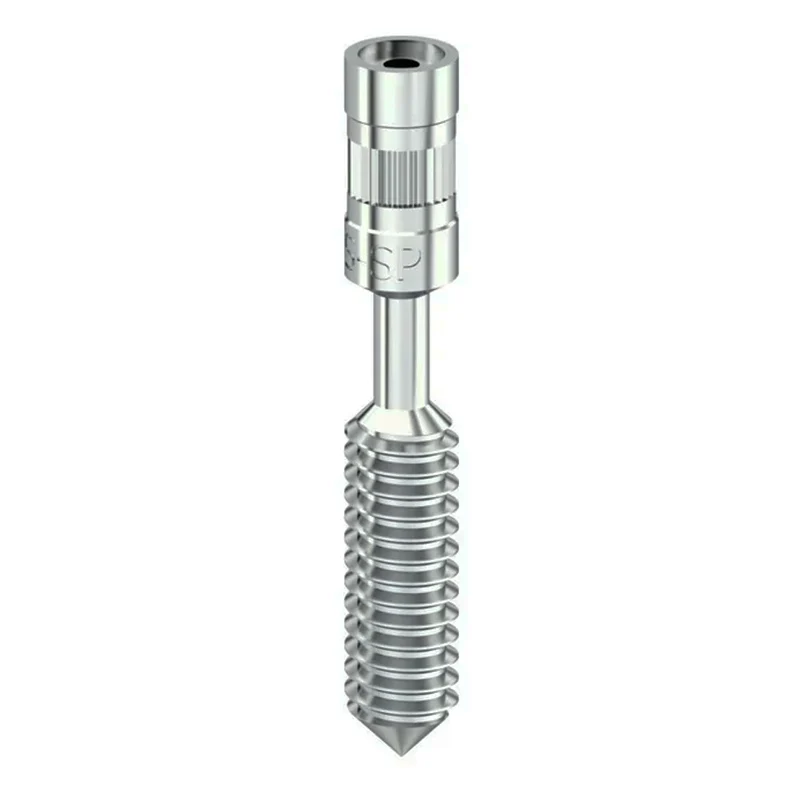

IKA® S-SP Single Spiral Spindle for Rotavisc, 25006843

The S-SP is a single spiral spindle for IKA Rotavisc viscometers. It can only be used in combination with the SAS-1 spiral spindle adapter set (Ident. No. 0025000377).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Spindle geometry	Spiral
Connection	Thread M2.5 LH
Diameter	6.4 mm
Immersion depth	21 mm
Spindle length	41.2 mm
Mounting Bracket	yes
Sample container	Specified chamber
Viscosity Accuracy (FSR)	1 %
Viscosity Repeatibility (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	492.1 mPa.s
Max. FSR match ROTAVISC lo-vi	98417 mPa.s
Min. FSR match ROTAVISC me-vi	5250 mPa.s
Max. FSR match ROTAVISC me-vi	1050000 mPa.s
Min. FSR match ROTAVISC hi-vi I	10500 mPa.s
Max. FSR match ROTAVISC hi-vi I	2100000 mPa.s
Min. FSR match ROTAVISC hi-vi II	42000 mPa.s
Max. FSR match ROTAVISC hi-vi II	8400000 mPa.s
Material in contact with medium	stainless steel 1.4404
Dimensions (W x H x D)	8 x 43 x 8 mm
Weight	0.008 kg

Product Data Sheet
