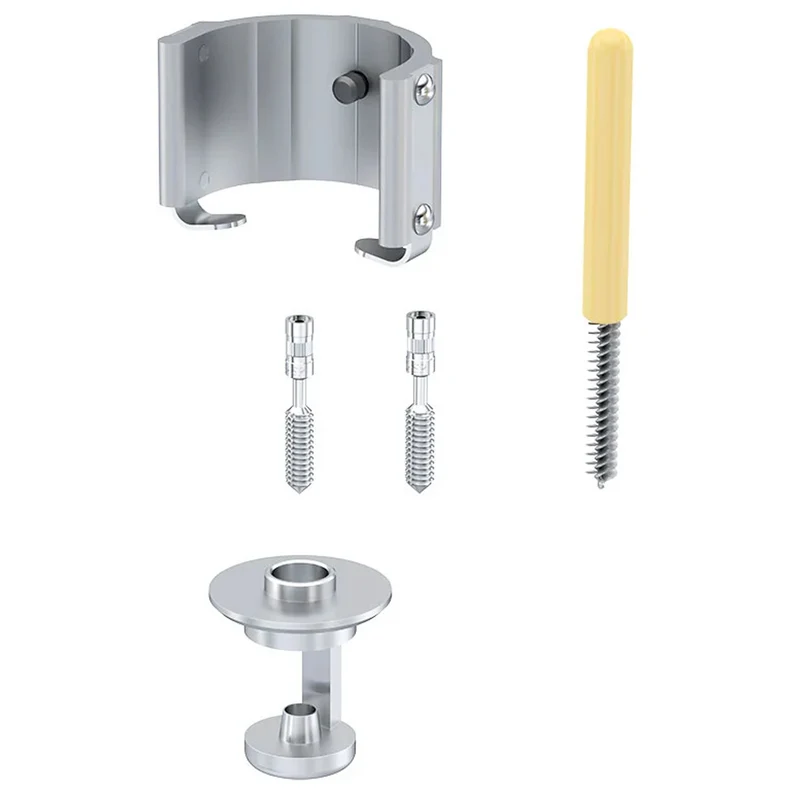

IKA® SAS-1 Spiral Adapter for Rotavisc, 25000377

The SAS-1 spiral adapter measures the viscosity of very sticky and highly viscous samples on IKA Rotavisc viscometers. Its spiral spindle geometry also allows the fluid behavior to be analyzed at different shear rates.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Spindle geometry	Spiral
Connection	Thread M2.5 LH
Diameter	6.35 mm
Spindle length	41.2 mm
Mounting Bracket	yes
Working temperature max.	300 °C
Viscosity Accuracy (FSR)	2 %
Viscosity Repeatibility (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	984 mPa.s
Max. FSR match ROTAVISC lo-vi	984000 mPa.s
Min. FSR match ROTAVISC me-vi	10500 mPa.s
Max. FSR match ROTAVISC me-vi	1100000 mPa.s
Min. FSR match ROTAVISC hi-vi I	21000 mPa.s
Max. FSR match ROTAVISC hi-vi I	21000000 mPa.s
Min. FSR match ROTAVISC hi-vi II	84000 mPa.s
Max. FSR match ROTAVISC hi-vi II	84000000 mPa.s
Material in contact with medium	stainless steel 1.4404
Dimensions (W x H x D)	160 x 82 x 270 mm
Weight	0.527 kg

Product Data Sheet
