IKA® SP SET-1 Spindle Set for Rotavisc, 25000319

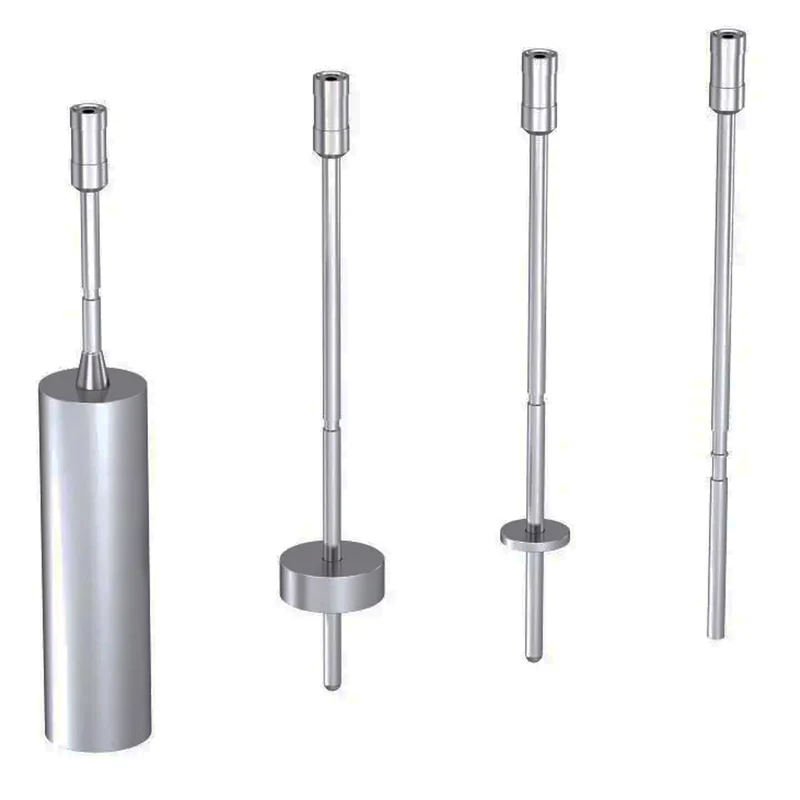

The IKA SP set-1 is a standard spindle set for IKA ROTAVISC rotational viscometers, containing four measuring spindles (SP-1, SP-2, SP-3 and SP-4). It is particularly suited to viscosity determination with the ROTAVISC lo-vi Complete and lo-vi Advanced viscometers. All wetted parts are made of 1.4404 stainless steel for chemical resistance and easy cleaning.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Spindle geometry	Cylinder
Connection	Thread M2.5 LH
Spindle length	115 mm
Sample volume	500 ml
Sample container	600 mL beaker low
Working temperature max.	300 °C
Viscosity Accuracy (FSR)	1 %
Viscosity Repeatability (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	15 mPa.s
Max. FSR match ROTAVISC lo-vi	6000000 mPa.s
Min. FSR match ROTAVISC me-vi	100 mPa.s
Max. FSR match ROTAVISC me-vi	64000000 mPa.s
Min. FSR match ROTAVISC hi-vi I	200 mPa.s
Max. FSR match ROTAVISC hi-vi I	128000000 mPa.s
Min. FSR match ROTAVISC hi-vi II	800 mPa.s
Max. FSR match ROTAVISC hi-vi II	512000000 mPa.s
Material in contact with medium	stainless steel 1.4404
Dimensions (W x H x D)	160 x 82 x 270 mm
Weight	0.449 kg

Product Data Sheet
