IKA® SP SET-2 Spindle Set for Rotavisc, 25000329

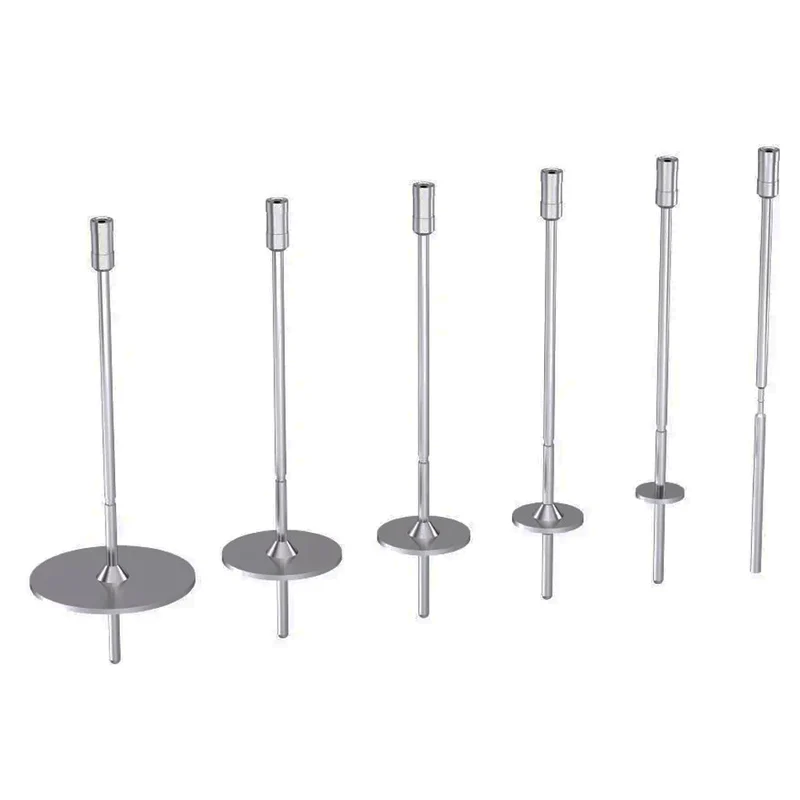

The IKA SP set-2 is a standard spindle set for IKA ROTAVISC rotational viscometers, containing six measuring spindles (SP-7, SP-8, SP-9, SP-10, SP-11 and SP-12). It is particularly suited to viscosity determination with the ROTAVISC me-vi, hi-vi I and hi-vi II Complete and Advanced viscometers. All wetted parts are made of 1.4404 stainless steel for chemical resistance and easy cleaning.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Spindle geometry	Disc
Connection	Thread M2.5 LH
Quick plug connector	yes
Hook connector	yes
Spindle length	135 mm
Sample volume	500 ml
Sample container	600 mL beaker low
Working temperature max.	300 °C
Viscosity Accuracy (FSR)	1 %
Viscosity Repeatability (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	15 mPa.s
Max. FSR match ROTAVISC lo-vi	3750000 mPa.s
Min. FSR match ROTAVISC me-vi	100 mPa.s
Max. FSR match ROTAVISC me-vi	40000000 mPa.s
Min. FSR match ROTAVISC hi-vi I	200 mPa.s
Max. FSR match ROTAVISC hi-vi I	80000000 mPa.s
Min. FSR match ROTAVISC hi-vi II	800 mPa.s
Max. FSR match ROTAVISC hi-vi II	320000000 mPa.s
Material in contact with medium	stainless steel 1.4404
Dimensions (W x H x D)	160 x 82 x 270 mm
Weight	0.469 kg
