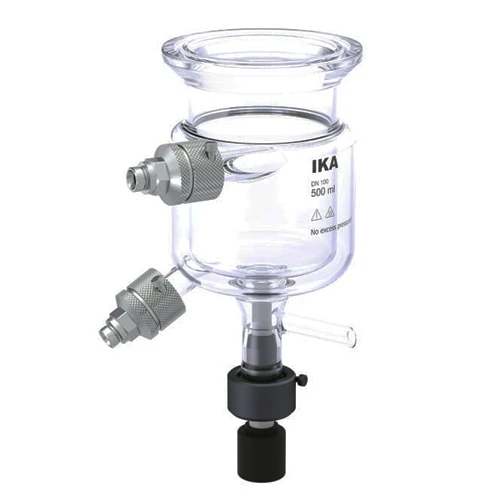

IKA® SY 500 D Reactor Vessel w/Bottom Discharge, 500ml, DN 100, 20113460

The IKA® SY 500 D is a double-walled reactor vessel with bottom discharge for the EasySyn synthesis reactor systems. With a 500 ml nominal volume and a DN 100 flange, it enables tempered reactions and controlled draining of the reaction mixture. It includes a stainless steel metal adapter (M 16x1 male) to connect the tempering hoses.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Nominal volume	500 ml
Flange size	DN 100
Fill level / diameter ratio	1.375
Fill level at nominal volume	72 mm
Vessel inner diameter	99 mm
Vessel outer diameter	130 mm
Permissible temperature range	-50 to 200 °C
Permissible vacuum	up to 3 mbar
