IKA® T-BAR Spindle Set, 25007765

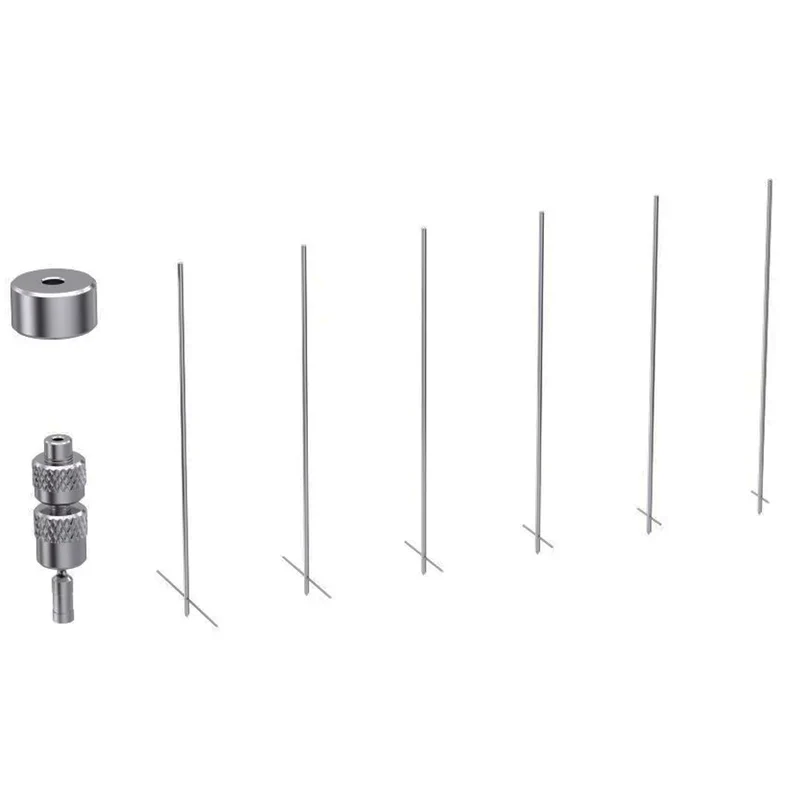

The IKA T-SP-SET is a complete T-bar spindle set for ROTAVISC viscometers used with the motorized HELISTAND, intended for measuring non-flowing samples such as creams, pastes and gels. The set comprises the six T-bar measuring spindles T-SP-1 through T-SP-6 along with the coupling and nut, covering the full T-bar viscosity range. Spindles are made of stainless steel 1.4404.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Spindle geometry	T-bar
Connection	Thread M2.5 LH
Quick plug connector	yes
Hook connector	yes
Sample volume	500 ml
Sample container	600 mL beaker low
Working temperature max.	300 °C
Viscosity Accuracy (FSR)	2 %
Viscosity Repeatability (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	93.75 mPa.s
Max. FSR match ROTAVISC lo-vi	936000 mPa.s
Min. FSR match ROTAVISC me-vi	1000 mPa.s
Max. FSR match ROTAVISC me-vi	10000000 mPa.s
Min. FSR match ROTAVISC hi-vi I	2000 mPa.s
Max. FSR match ROTAVISC hi-vi I	20000000 mPa.s
Min. FSR match ROTAVISC hi-vi II	8000 mPa.s
Max. FSR match ROTAVISC hi-vi II	80000000 mPa.s
Material in contact with medium	stainless steel 1.4404
Dimensions (W x H x D)	160 x 82 x 270 mm
Weight	0.45 kg

Product Data Sheet
