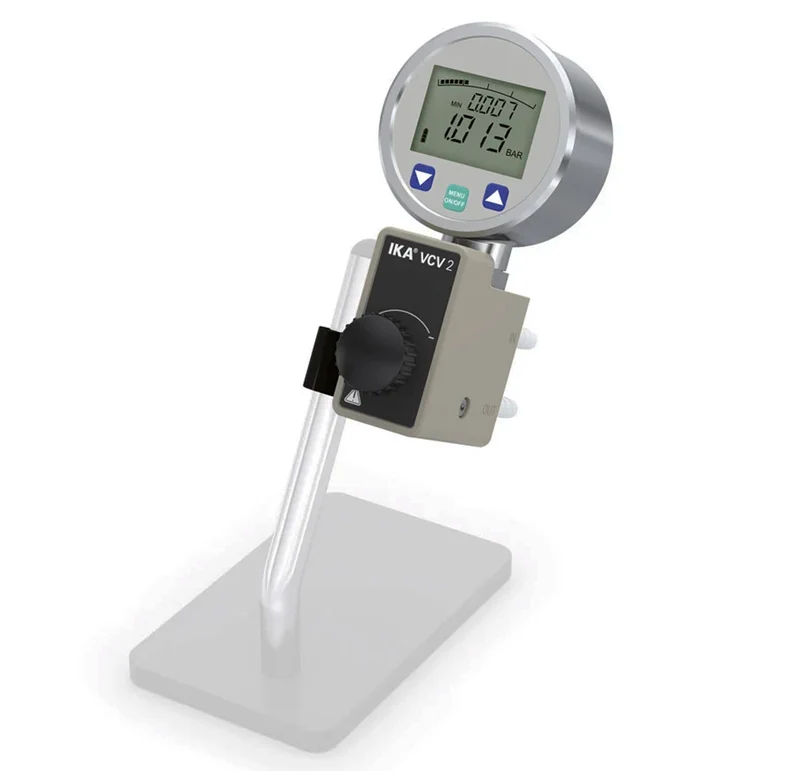

IKA® VCV 2 Digital Vacuum Control Valve, 20004893

The IKA VCV 2 is a digital vacuum control valve that allows the set vacuum value to be adjusted on the digital manometer. VC 10.400 stand is not included in the scope of delivery and is available as an accessory (ID no. 0035001735).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Connection diameter suction side	8 mm
Connection diameter pressure side	8 mm
Input pressure	1 - 1050 mbar
Display	LCD
Pressure unit / scale	mbar
Control range	1 - 1050 mbar
Resolution pressure	50 mbar
Measurement uncertainty	1 mbar
Medium temperature (gas)	5 - 40 °C
Venting valve	yes
Material in contact with medium	Al2O3, PP, stainless steel
Housing material	PP
Fastening	stand / clamp
Dimensions (W x H x D)	65 x 255 x 140 mm
Weight	0.7 kg
Permissible ambient temperature	0 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 65

Product Data Sheet
