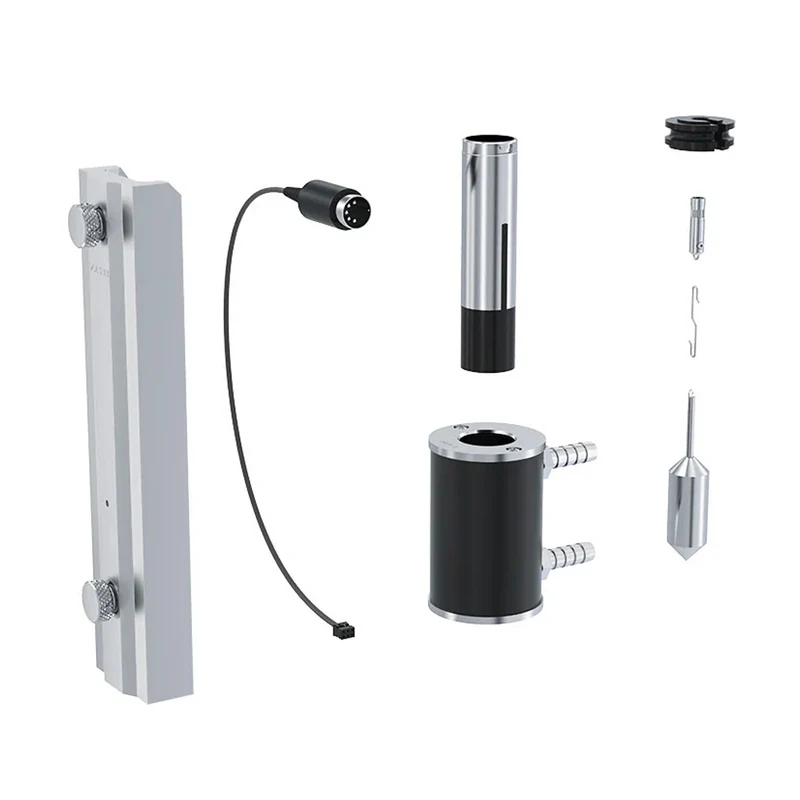

IKA® VLS 1 Lw Vlume Adapter Set for Rotavisc, 25000352

The VLS 1 (VOLS-1) low-volume adapter set measures the viscosity of especially valuable or expensive samples on IKA Rotavisc viscometers. It combines a double jacket with temperature sensor for rapid heating or cooling of the sample and a coaxial cylinder system for analysis at a defined shear rate. Additional spindles and chambers for different volumes are available separately.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Spindle geometry	Cylinder
Connection	Thread M2.5 LH
Hook connector	yes
Sample volume	6.7 ml
Flow Jacket	yes
Mounting Bracket	yes
Sample container	Specified chamber
Working temperature max.	100 °C
Viscosity Accuracy (FSR)	2 %
Viscosity Repeatibility (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	1.5 mPa.s
Max. FSR match ROTAVISC lo-vi	30000 mPa.s
Min. FSR match ROTAVISC me-vi	16 mPa.s
Max. FSR match ROTAVISC me-vi	320000 mPa.s
Min. FSR match ROTAVISC hi-vi I	32 mPa.s
Max. FSR match ROTAVISC hi-vi I	640000 mPa.s
Min. FSR match ROTAVISC hi-vi II	128 mPa.s
Max. FSR match ROTAVISC hi-vi II	2600000 mPa.s
Material in contact with medium	stainless steel 1.4404
Dimensions (W x H x D)	300 x 110 x 275 mm
Weight	1.656 kg

Product Data Sheet
