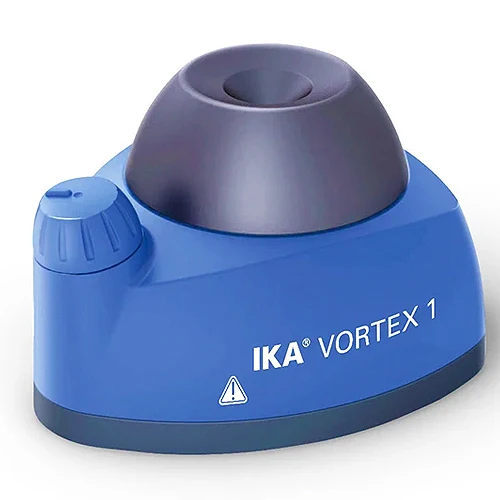

IKA® Vortex 1 Variable Speed Test Tube Shaker, 4047700

The IKA Vortex 1 is a compact, robustly built test tube shaker engineered for rapidly mixing the contents of individual tubes and small vessels. Its coated zinc die-cast base gives the unit a low centre of gravity and steady footing, while the inert plastic top and tube cup resist chemical attack during everyday laboratory use.

Speed is infinitely adjustable across a 1000 to 2800 rpm range, letting you dial in anything from a gentle swirl to a vigorous vortex. A touch-start function spins the sample only while the tube is pressed against the cup, making it well suited to quick resuspension of pellets and routine sample homogenisation. The unit accepts containers up to 30 mm in diameter, such as test tubes, centrifuge tubes and small beakers.

Package Includes:

• IKA Vortex 1 test tube shaker
• Operating instructions

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Type of movement	orbital
Shaking stroke	4.5 mm
Permissible shaking weight (incl. attachment)	0.1 kg
Motor rating input	1.2 W
Motor rating output	0.8 W
Permissible ON time	100 %
Speed min (adjustable)	1000 rpm
Speed max.	2800 rpm
Speed display	none
Timer display	none
Touch function	yes
Dimensions (W x H x D)	95 x 70 x 110 mm
Weight	0.828 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	30 W

Product Data Sheet | Product Manual
