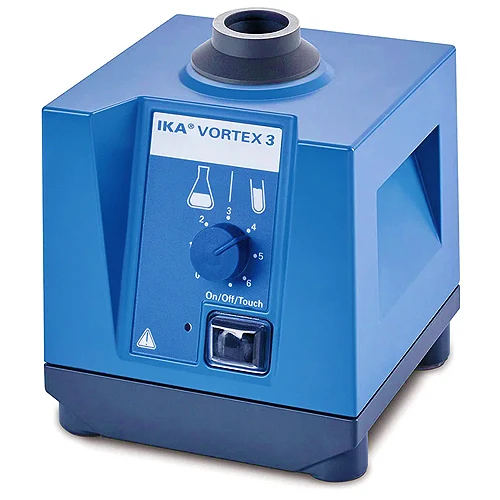

IKA® Vortex 3 Variable Speed Orbital Test Tube Shaker, 3340001

The IKA Vortex 3 is a robust orbital vortex shaker built for rapidly mixing the contents of tubes, small vessels and microtiter plates. A sturdy zinc die-cast casing combined with silicone feet offering ultra-high vibration damping keeps the unit stable even at the top of its speed range, while the self-ventilating motor allows extended continuous running with minimal self-heating.

Speed is infinitely adjustable from 500 to 2,500 rpm with a 4 mm orbital diameter. The unit can run continuously or in short-time (touch) mode, activated simply by pressing down on the attachment. Three interchangeable attachments and seven inserts (ordered separately) adapt it to tubes, microtiter plates and Erlenmeyer flasks up to 250 ml.

Package Includes:

• IKA Vortex 3 vortex shaker
• VG 3.1 standard attachment

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Type of movement	orbital
Shaking stroke	4 mm
Permissible shaking weight (incl. attachment)	0.4 kg
Motor rating input	58 W
Motor rating output	10 W
Permissible ON time	100 %
Speed min (adjustable)	500 rpm
Speed range	0 - 2500 rpm
Speed display	none
Operating mode	continuous operation
Touch function	yes
Working with microtiter plates	yes
Number of microtiter plates	1
Dimensions (W x H x D)	127 x 136 x 149 mm
Weight	4.5 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	115 V
Frequency	60 Hz
Power input	60 W
Other voltage variants available	200 - 240 V / 115 V / 100 V

Product Data Sheet  |  Product Manual
