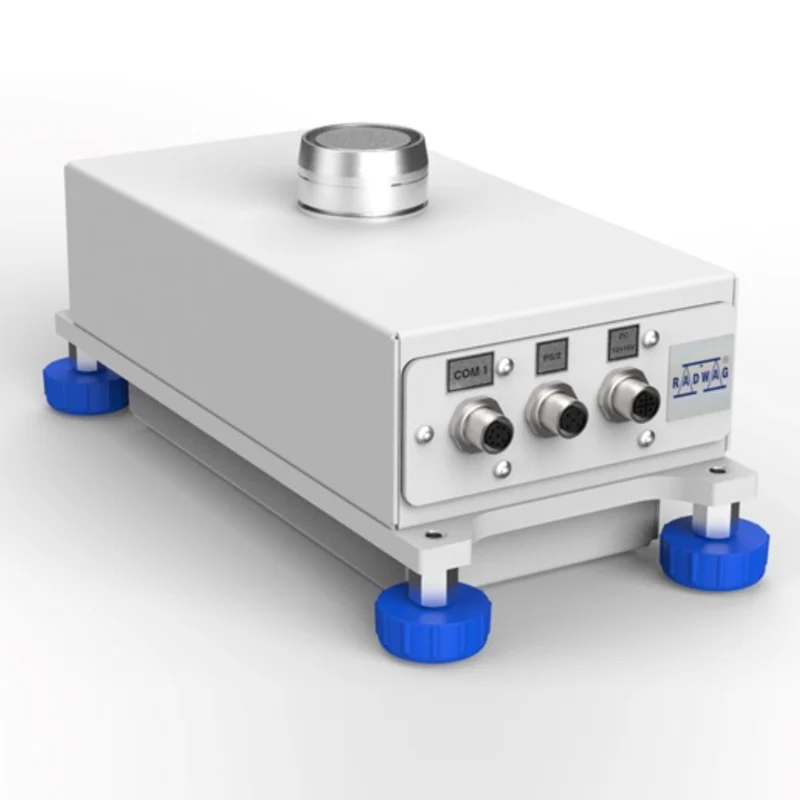

Radwag® MAS 1.21.Y Weighing Module, 21g x 0.01mg, Resistive Color Touch Display, WX-016-0148

The MAS.1 Y device is a high-resolution electromagnetic weighing module, equipped with a Y touch panel featuring a 5.7" display. It is designed for integration into the customer’s weighing system. Its robust construction and advanced electronics provide excellent adaptability, whether installed within a technological line or built into the customer’s equipment.

Due to its high measurement accuracy, it is recommended to install the module within the customer’s device—such as inside a draft shield—to minimize the impact of ambient conditions on the measurement results

Features:

• Brand new design of the electromagnetic mechanism housed in an aluminium enclosure,
• Readability of 0.01 mg,
• Overload protection,
• Ease of adaptation to the required storage space,
• Internal adjustment,
• Various options of hardware configuration

Country of Origin: Poland

Warranty: Comes with 2 Years Manufacturer's Warranty

Radwag® MAS 1 (IP 54) Weighing Module Configurations:

Part No	Model	Min. Load	Max.	Resolution	Display
WX-016-0146	MAS 1.21	1mg	21g	0.01mg	x
WX-016-0147	MAS.1.21.R	1mg	21g	0.01mg	LCD Backlit
WX-016-0148	MAS.1.21.Y	1mg	21g	0.01mg	Resistive
WX-016-0149	MAS 1.51	1mg	51g	0.01mg	x
WX-016-0150	MAS 1.51.R	1mg	51g	0.01mg	LCD Backlit
WX-016-0151	MAS 1.51.Y	1mg	51g	0.01mg	Resistive
WX-016-0164	MAS 1.82/220	1mg	82/220g	0.01/01mg	x
WX-016-0165	MAS 1.82/220.R	1mg	82/220g	0.01/01mg	LCD Backlit
WX-016-0166	MAS 1.82/220.Y	1mg	82/220g	0.01/01mg	Resistive

Radwag® MAS 1.21.Y Product Spec. Sheet
