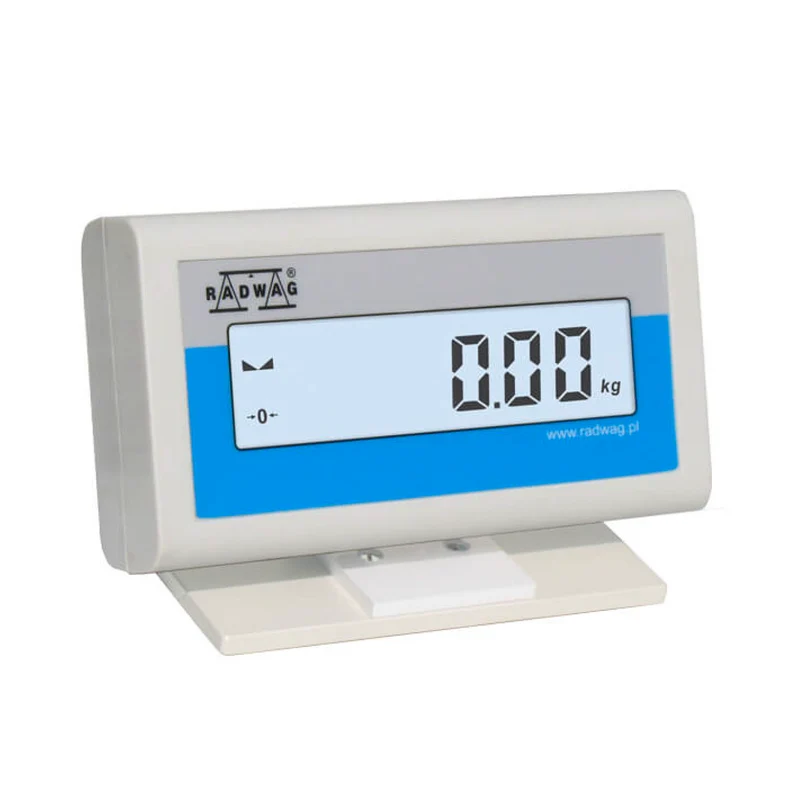

Radwag® WD-4/4 LCD Weighing Display, WX-002-0017

The Radwag® WD-4/4 LCD display (Part No. WX-002-0017) is an auxiliary unit designed for connection to the PUE 7 indicator through a D-SUB 15 male connector. Housed in a durable plastic casing, it features an LED backlit LCD screen and is powered directly by the connected weighing indicator.

Features:

• Display: 19 mm digit height for clear readability.
• Construction: Durable ABS plastic housing.
• Power Supply: Powered directly from the connected indicator (6V DC)
• Connectivity: RS-232 communication interface
• Cable Length: 1.5 meters, allowing flexible placement
• Dimensions: 150 x 80 x 33 mm
• Automatic baud rate recognition
• Screen saver

Radwag® WD-4/4 Product Spec. Sheet
