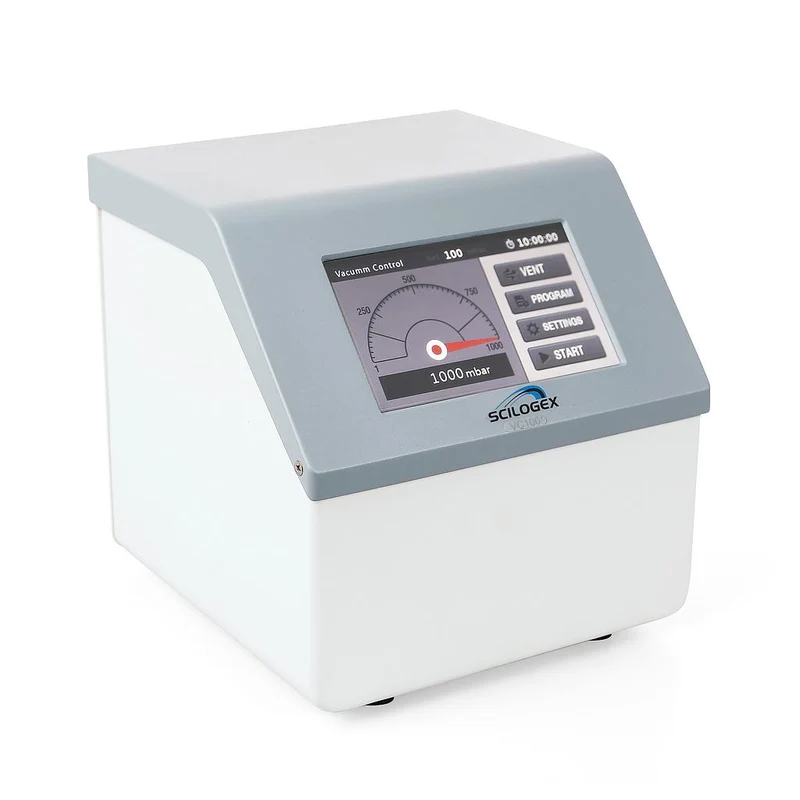

Scilogex® SCI100VC™ Benchtop Vacuum Controller, 60311003009

The Scilogex® SCI100VC™ is compatible with a wide range of vacuum sources, including diaphragm, piston, and rotary vane pumps, offering users the convenience of starting their operations and leaving them unattended, thanks to its advanced smart features. Its control technology, evaporation detection, and intuitive graphical interface make vacuum control simple and efficient for laboratory applications, including rotary concentrators, parallel evaporators, desiccation, and distillation. The SCI100™ operates in 1-1000mbar at 100-230V, 50/60Hz

Specifications:

Vacuum range	1-1000mbar
Control operation mode	Single-point control operation mode, program operation mode
Programable	Can save up to 5 programs. Each program contains five-step control (vacuum degree and timer can be set).
Display screen	5-inch TFT touch screen
Sensor overload pressure	1500mbar
Tube connection interface diameter	6.2mm
Materials in contact with steam	PTFE, PP, silica gel and ceramics
Steam temperature	5℃-40℃
External dimensions WxDxH	189mm×207mm×193mm
Weight	9lbs
Input power supply	AC110—240V, 50Hz/60Hz
Working temperature	10℃-40℃, ≤80%RH，(altitude does not exceed 2000 meters)
Input power	600W
Maximum output power	500W (220V), 300W(110V)

Country of Origin: China

Warranty: Comes with 2 Years Manufacturer's Warranty
