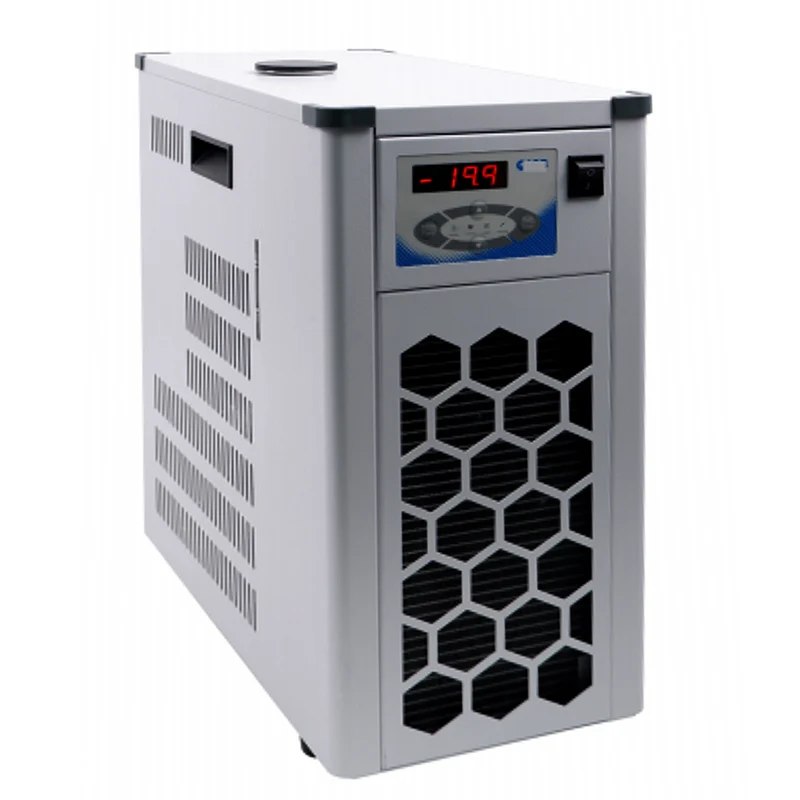

Scilogex® SCIP5-Mini™ LED Display Recirculating Chiller, Min:Temp:-20°C, 60321002209

The Scilogex® SCIP5-Mini™ recirculating chiller is a compact, efficient cooling system designed for laboratory applications requiring precise temperature control. With its small footprint, it delivers reliable, eco-friendly cooling for various instruments, helping maintain optimal conditions in limited spaces. It comes with 2 x slicone Insulation tube 1.8m

Applications:

• Ideal for cooling rotary evaporators of 3L capacity bioreactors etc
• Compatible with distillation systems, concentrators, extractors, condensing reflux devices, etc
• For analytical devices such as ultrasonic disrupting instruments and continuous flow analyzers

Features:

• Temperature range: -20C to room temperature
• Employs PID temperature control with built-in PT1000 temperature sensor that provides high accuracy of temperature control
• A crystal-clear LED display that switches between display of set temperature and that of actual temperature
• The entire unit is capable of protection against short circuit, over-current, overload and delayed start
• Integrated design of drain outlet and water outlet that allows easy drainage
• The compressor employs state-of-the-art R290 environment-friendly refrigerant
• The liquid pathway is made of stainless steel or high-quality corrosion-resistant material
• User-friendly operating panel for easy operation
• A large-volume open reservoir allows easy filling and supports cold trap experiments


Specifications:

Range of temperature control	-20°C to Room Temperature
Temperature adjustment accuracy	0.1°C
Temperature control accuracy	±0.3°C (0°C a 20°C typical value)
Reservoir capacity	4.5L
Range of temperature adjustment	-30°C։30°C
Temperature display	LED
Type of temperature sensor	PT1000
Compressor refrigerant	R290
Circulating pump throughput	22L/min
Circulating pump head	6m
Pump pressure	0.3bar
Pump suction	0.2bar
Power	700W
Maximum overall dimensions	220*420*495 (mm)
Weight	30Kg
Power supply	110V/60Hz
Operating environment	10°C։4 0°C RH ≤ 80%

Country of Origin: China

Warranty: Comes with 2 Years Manufacturer's Warranty
